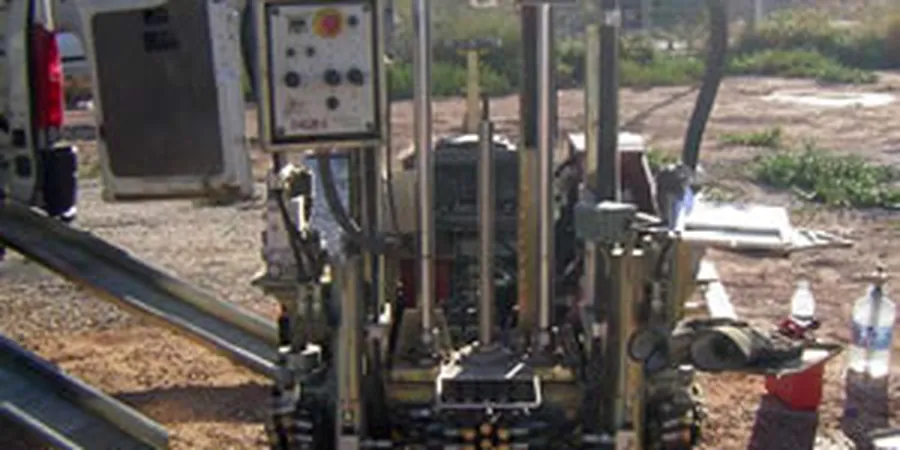

Overland Park’s subgrade often conceals weathered shale and limestone float within its residual clay mantle—a legacy of the Kansas City Group bedrock that underlies much of Johnson County. When a standard SPT boring struggles to differentiate thin sand seams from stiff clay at 15-foot depth, the cone penetration test reads the transition in real time. On corporate campus expansions near College Boulevard or infill lots south of I-435, pore pressure dissipation data from CPT testing reveals drainage behavior that governs excavation timelines. Unlike intermittent sampling, CPT produces a continuous sleeve friction and tip resistance profile, letting our team correlate directly to soil behavior type without the disturbance inherent in split-spoon recovery. For sites where the water table fluctuates seasonally—common in the Turkey Creek basin—piezocone readings expose perched zones that conventional borings can miss. The method also feeds directly into liquefaction assessments when fine-grained soils near Indian Creek warrant screening under ASCE 7-22 Chapter 21.
A continuous cone profile catches the 6-inch silt seam that a 5-foot SPT interval misses—and in Overland Park’s interbedded deposits, that seam often controls settlement.
Methodology and scope
Local considerations
ASCE 7-22 Section 20.4 requires site-specific shear wave velocity or penetration resistance for Site Class determination; defaulting to conservative assumptions on a Class D profile along the Blue River corridor can inflate seismic base shear by 40% or more. CPT soundings, when paired with downhole Vs measurements or site-specific correlations, frequently reclassify Overland Park sites to Class C, yielding structural steel savings that dwarf the investigation cost. In the expansive clay zones mapped by the Kansas Geological Survey across central Johnson County, failing to identify moisture-sensitive shale at bearing depth leads to slab distress within two wet-dry cycles. The continuous sleeve friction trace flags these zones before a single footing is poured. Ignoring cone data on a multi-story mixed-use project near Downtown Overland Park risks both over-excavation and under-designed foundations—two outcomes that delay occupancy and erode the construction budget by mid-project.
Applicable standards
ASTM D5778-20 — Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils, ASCE 7-22 Chapter 20 — Site Classification Procedure for Seismic Design, ASTM D6067/D6067M-17 — Standard Practice for Using the Electronic Piezocone Penetrometer for Environmental Site Characterization, IBC 2021 Section 1803 — Geotechnical Investigations
Associated technical services
Piezocone with Dissipation Testing
15 cm² cone with pore pressure transducer and dissipation holds at clay contacts to estimate in-situ consolidation coefficients for settlement analysis.
CPT-Based Liquefaction Screening
Evaluation of cyclic resistance ratio from normalized cone tip resistance using the NCEER/Youd methodology for alluvial soils near Indian Creek.
Seismic CPT (SCPT) Add-On
Downhole geophone module integrated into the cone string to record shear wave velocity at 3-foot intervals, enabling direct Site Class determination per ASCE 7.
Typical parameters
Frequently asked questions
What does a CPT test cost for a typical Overland Park commercial lot?
A single CPT sounding to 40–60 feet depth on an accessible Overland Park commercial parcel generally runs between US$170 and US$280 per sounding, depending on total linear footage and whether piezocone or seismic modules are included. Mobilization within Johnson County is quoted separately and varies with distance from our staging yard.
Can CPT replace SPT borings entirely for a foundation design in Johnson County?
CPT provides continuous stratigraphy and geotechnical parameters that often exceed the resolution of SPT data, but most Overland Park building officials still require at least one soil boring per IBC Table 1803.1. We typically recommend a hybrid program: CPT soundings at 50-foot spacing to map variability, with a single SPT borehole for material verification and laboratory index testing.
How does the cone distinguish between the local shale and stiff clay in Overland Park?
The friction ratio and pore pressure response tell the story. Weathered Pennsylvanian shale typically shows a friction ratio below 2% with negative u2 response during penetration, while the overlying residual clay produces a friction ratio above 4% and positive excess pore pressure. The Soil Behavior Type (SBTn) chart normalized for overburden stress separates these units clearly in the digital log.
